This is a new build of a DIY kit with a custom prototype panel! We don't plan on making anymore units after this run!

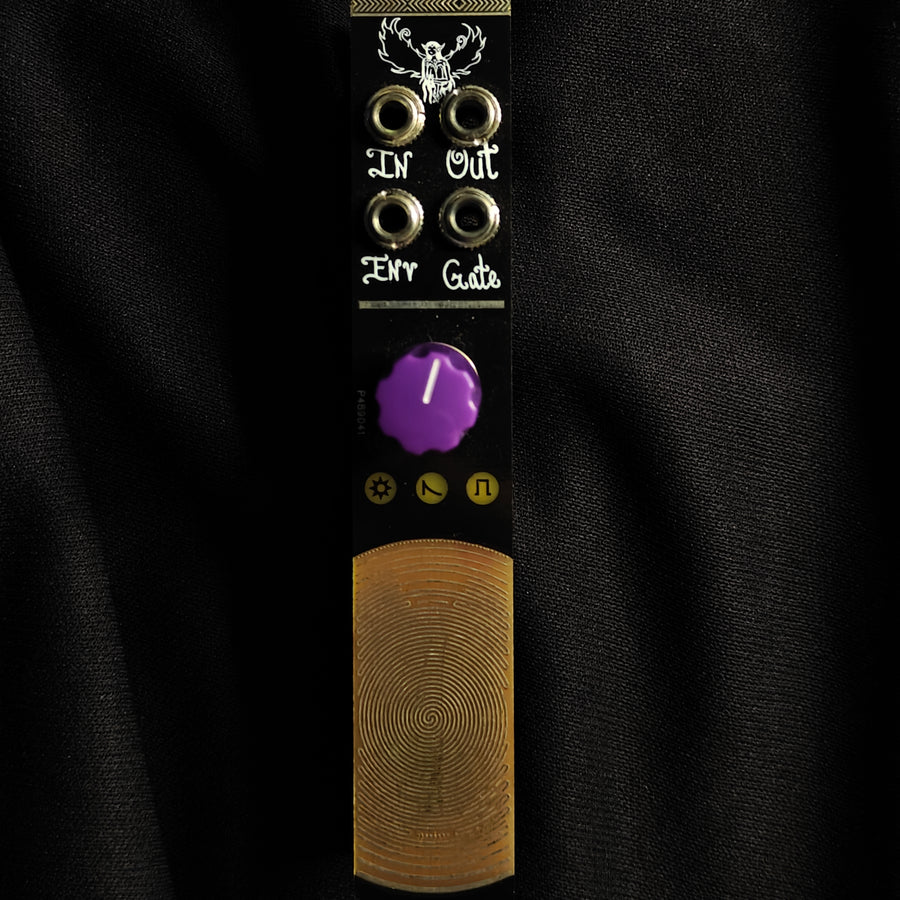

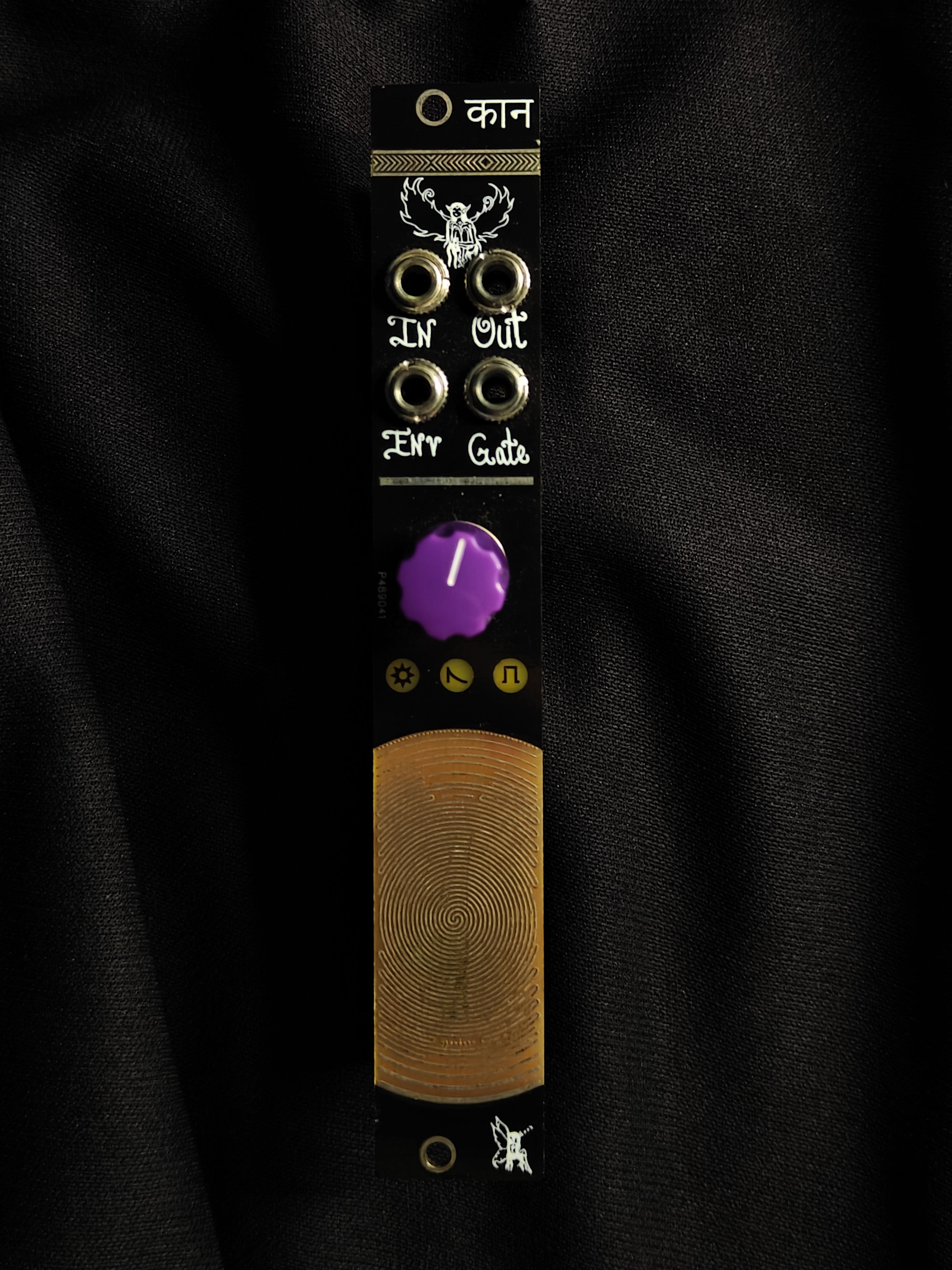

कान | Kaan - Ear

Ears for your modular

• Built-in contact microphone soldered right under the front panel, turning the panel and your entire case into a microphone.
• Increasingly spaced ridges on the panel, generating sonically interesting pulses or impulse combs when rubbed. Strike, pick or scratch digital resonators like Rings, Elements or the 4ms SMR.
• High-quality amplification stage suitable for external contact microphones, electro-acoustic instruments like guitars, or plain line-level signals.

Ears has additional outputs:

• Envelope follower, translating the decaying amplitude profile of a tap into an envelope CV.
• Gate detector, translating taps into gate signals.
• Envelope follower and gate detector can process external signals.

Details

• Audio amplifier with 1M input impedance, up to 40dB of gain.
• External input bypassing the built-in contact microphone.
• Envelope follower with 3 preset attack and release times (adjustable by jumper).
• Gate detector with 3 preset sensitivity levels (adjustable by jumper) and +8V gate output.
• Three indicator LEDs: amplifier clipping (red), envelope follower level (white), gate detector activity (orange).


Specs:
- Width: 4HP
- Power: 5mA +12V, 5mA -12V
- Includes: 2x M3 mounting screws, 16-pin Eurorack power cable

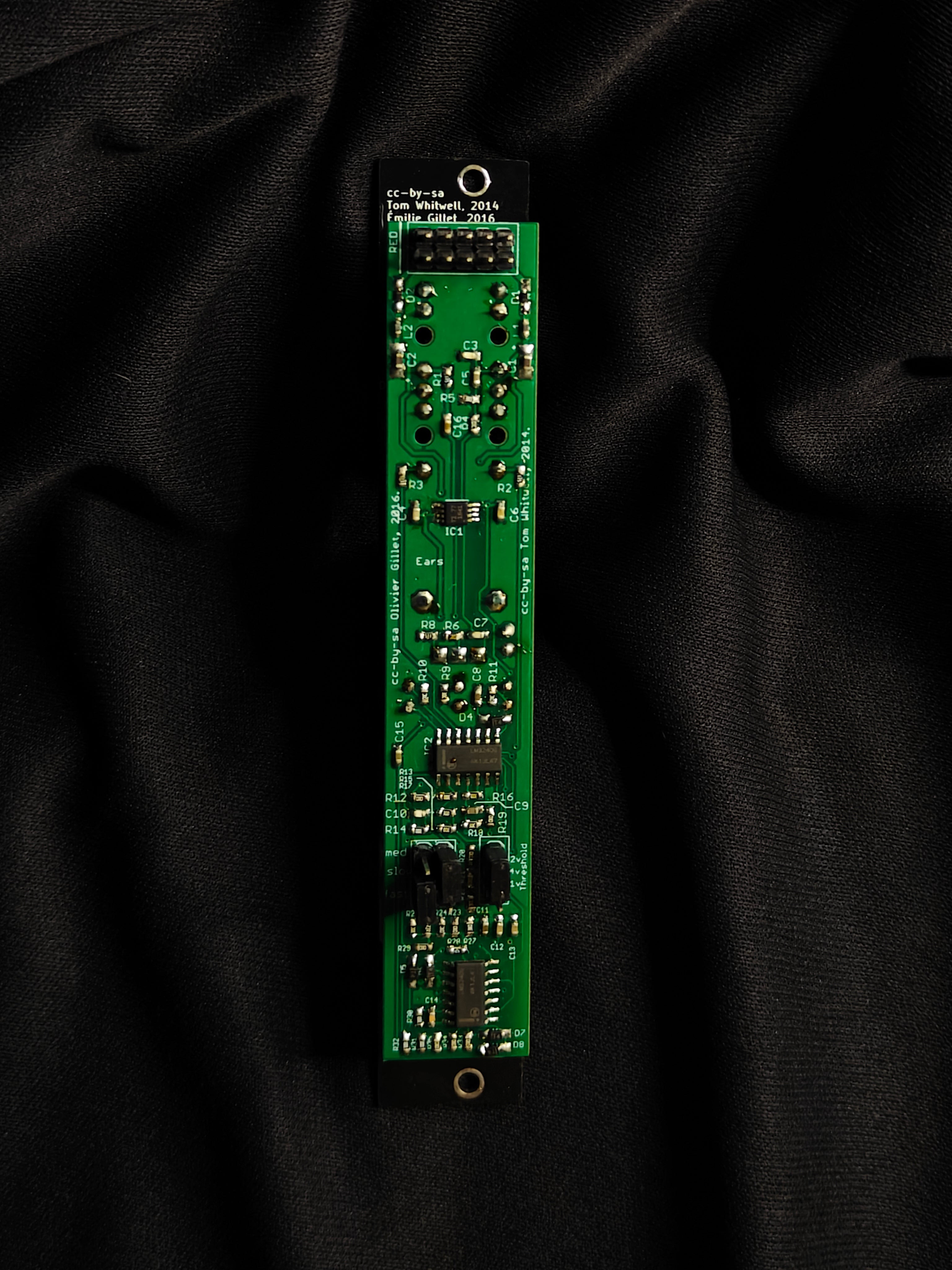

कान is a DIY build of the Mutable Instruments Ears module, with original schematics provided under CC-BY-SA 3.0 license. This is specifically a build of the CCTV.FM Ears 0603 rework.

NB: This is NOT a Mutable Instruments product, and under no circumstances should they be contacted for any support queries! Please contact us for any and all support required!
