मध्यम | Madhyam - Middle, Intermediate

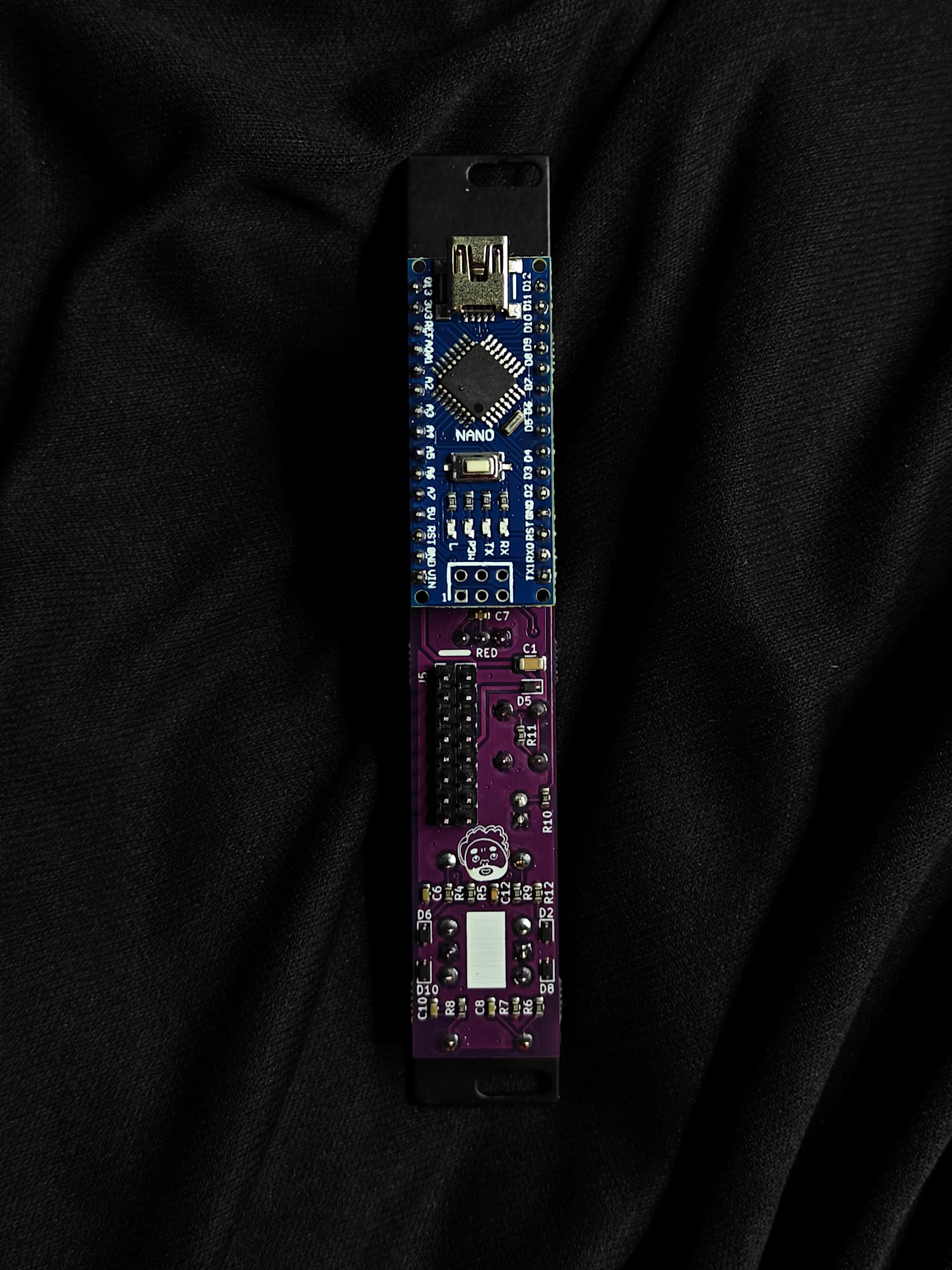

Madhyam1 is a digital, reprogrammable general-purpose Eurorack module geared towards CV and Gate signal generation. It is a 4HP Eurorack 'hat'/expansion for the venerable Arduino Nano, making it the perfect choice for rhythm and modulation duties in any rack; whether you just want a compact utility of your choice, or are a maker looking to rapidly prototype your firmware ideas into a real module, with all the ease of programming that the Arduino Nano allows.

This module can be bought either without any firmware or pre-flashed with one of many programs available.

Madhyam1 provides 4x 3.5mm mono jacks connected to the I/O pins of the Nano that can be programmed as either input or output depending on the firmware: F1, F2, and F3 are connected to analog and digital pins while F4 is connected only to a digital pin.
The input/output voltage range for the patch points is 0-5V only.

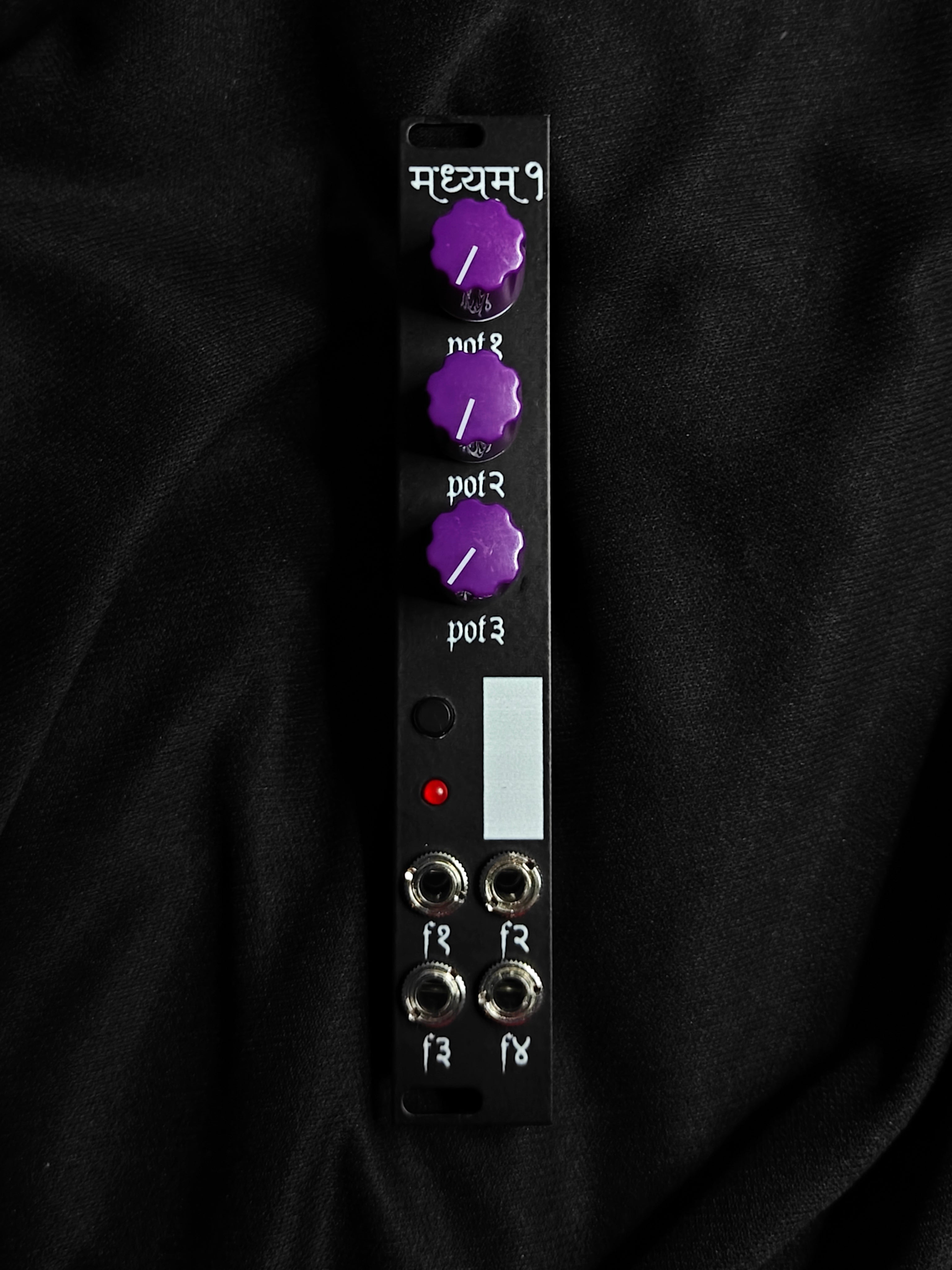

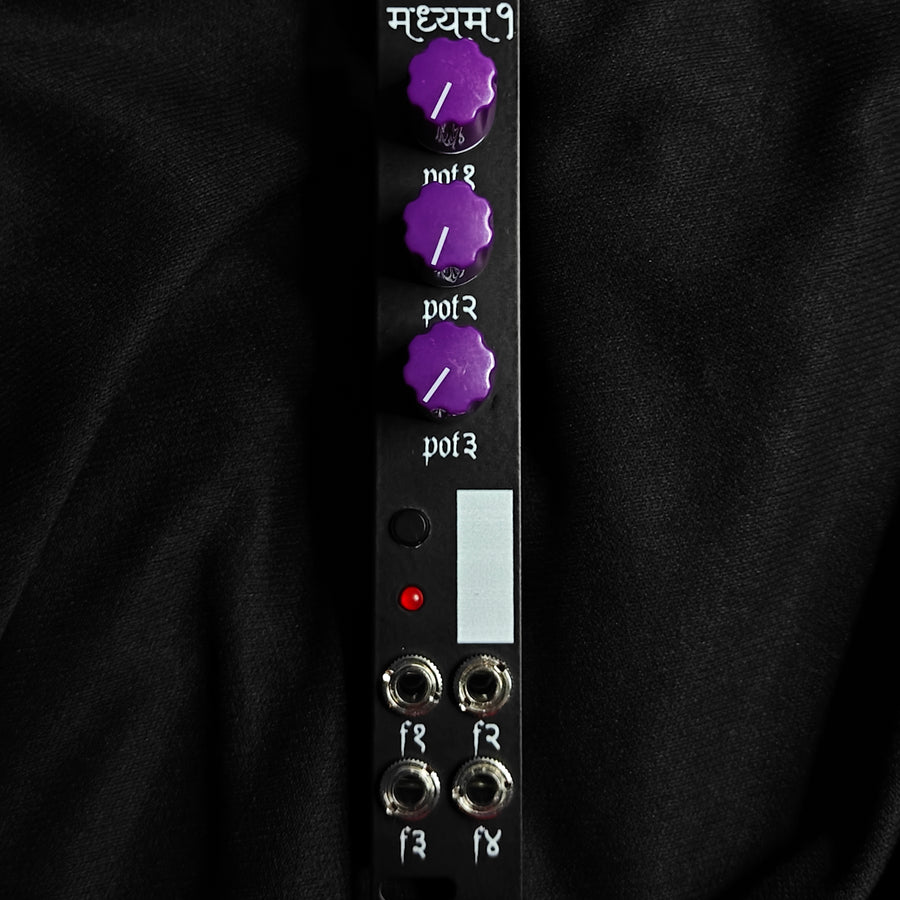

Alongside these, the module also includes 3x high-quality potentiometers, 1x push-button switch, and an LED indicator. And a blank panel area for you to give your module a unique name!

Specs:
- Width: 4HP
- Power: 30mA +12V, 0mA -12V
- Includes: 2x M3 mounting screws, 16-pin Eurorack power cable

मध्यम१ is an adaptation of the 'Mod1' open-source project by HAGIWO. More information on the project as well as example firmware code can be found here: https://note.com/solder_state/n/nc05d8e8fd311

Alternatively, Modulove and Rob Heel each have a web-based flasher for directly programming your module with a selection of example firmwares: https://dl.modulove.de/module/mod1/
https://robertheel.com/content/mod1firmwareflasher/

NB: This is NOT a HAGIWO product, and under no circumstances should they be contacted for any support queries! Please contact us for any and all support required!

Arduino(R) and Arduino Nano(R) are registered trademarks of
Arduino SA. This product is an independent production and is NOT
affiliated with, sponsored by, or endorsed by Arduino SA.
All trademarks are the property of their respective owners.
