7U 84HP Powered Eurorack Case

This powered Eurorack case is a heavy-duty, lightweight, locally manufactured aluminium enclosure designed to house and power your Eurorack modular system, serving as a solid, practical foundation for studio use or live performance.

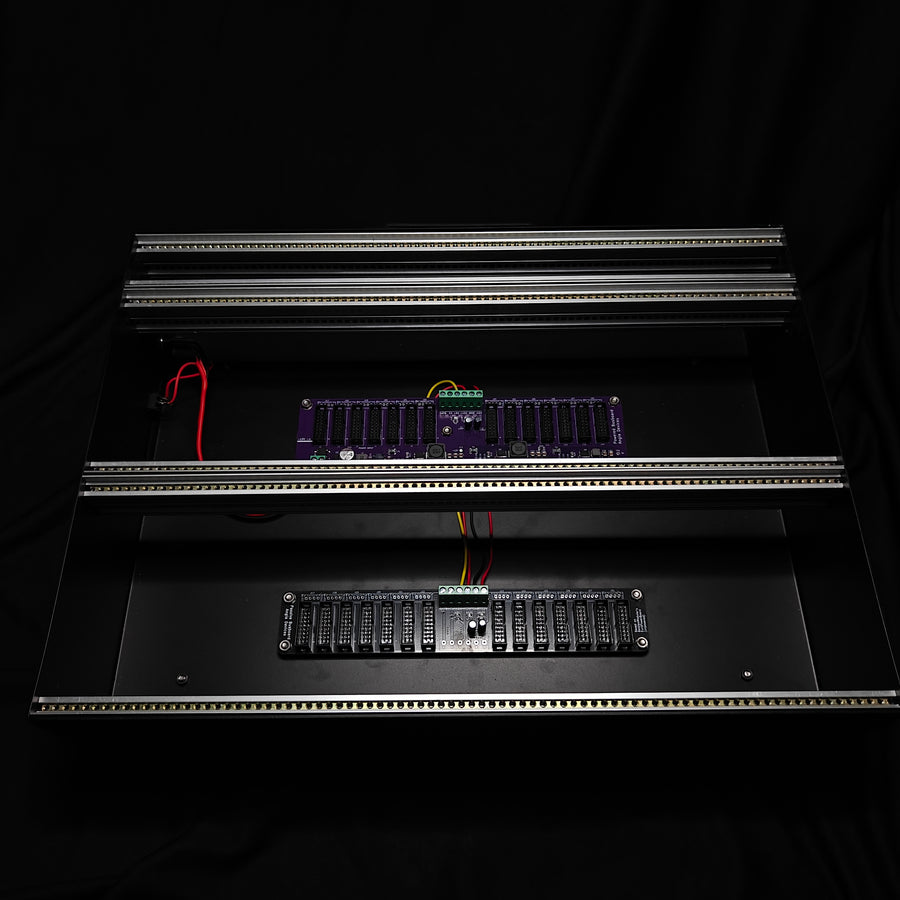

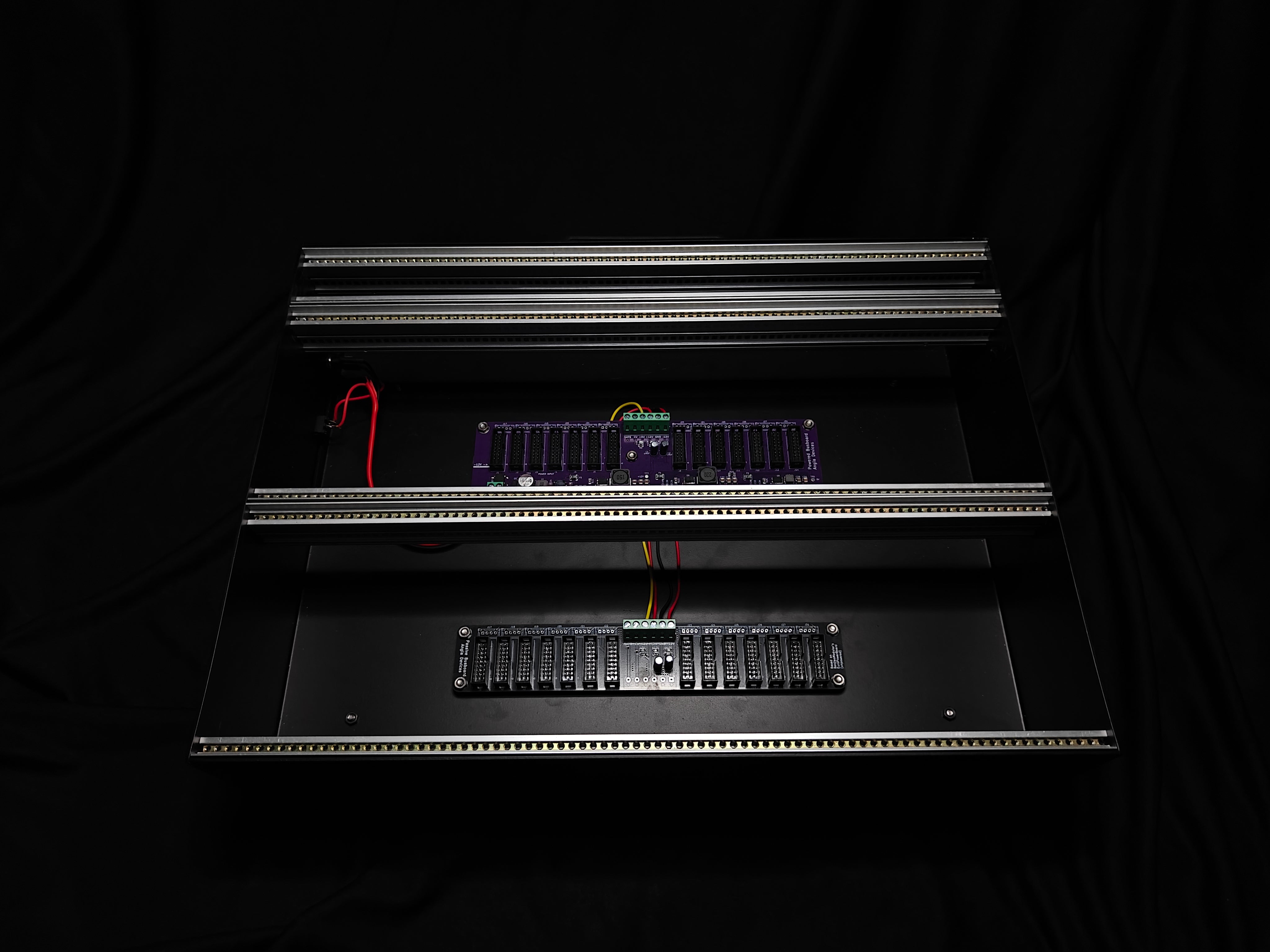

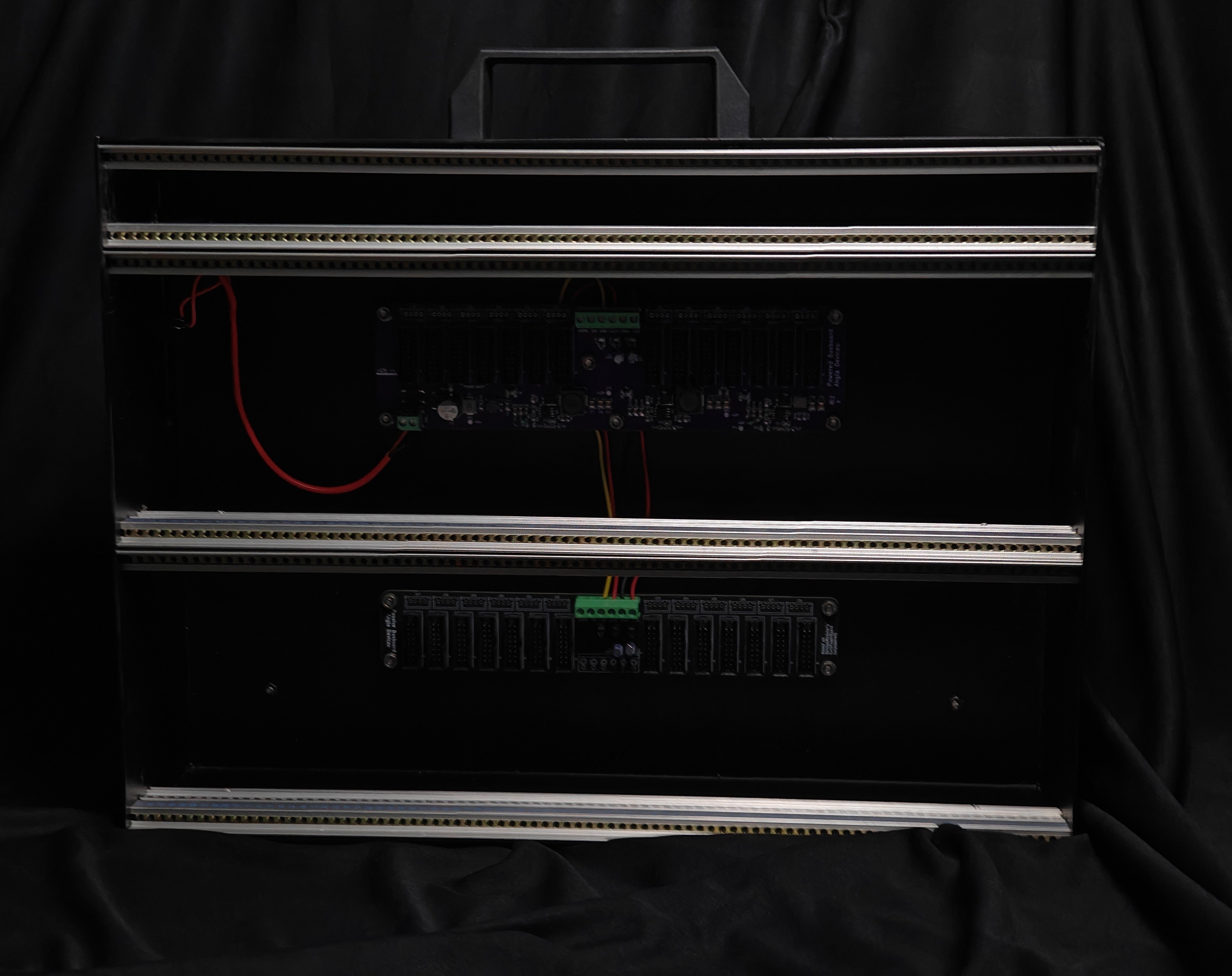

The case includes 2x rows of 3U for mounting standard Eurorack modules as well as a single 1U (Intellijel-format) row for mounting 1U modules.

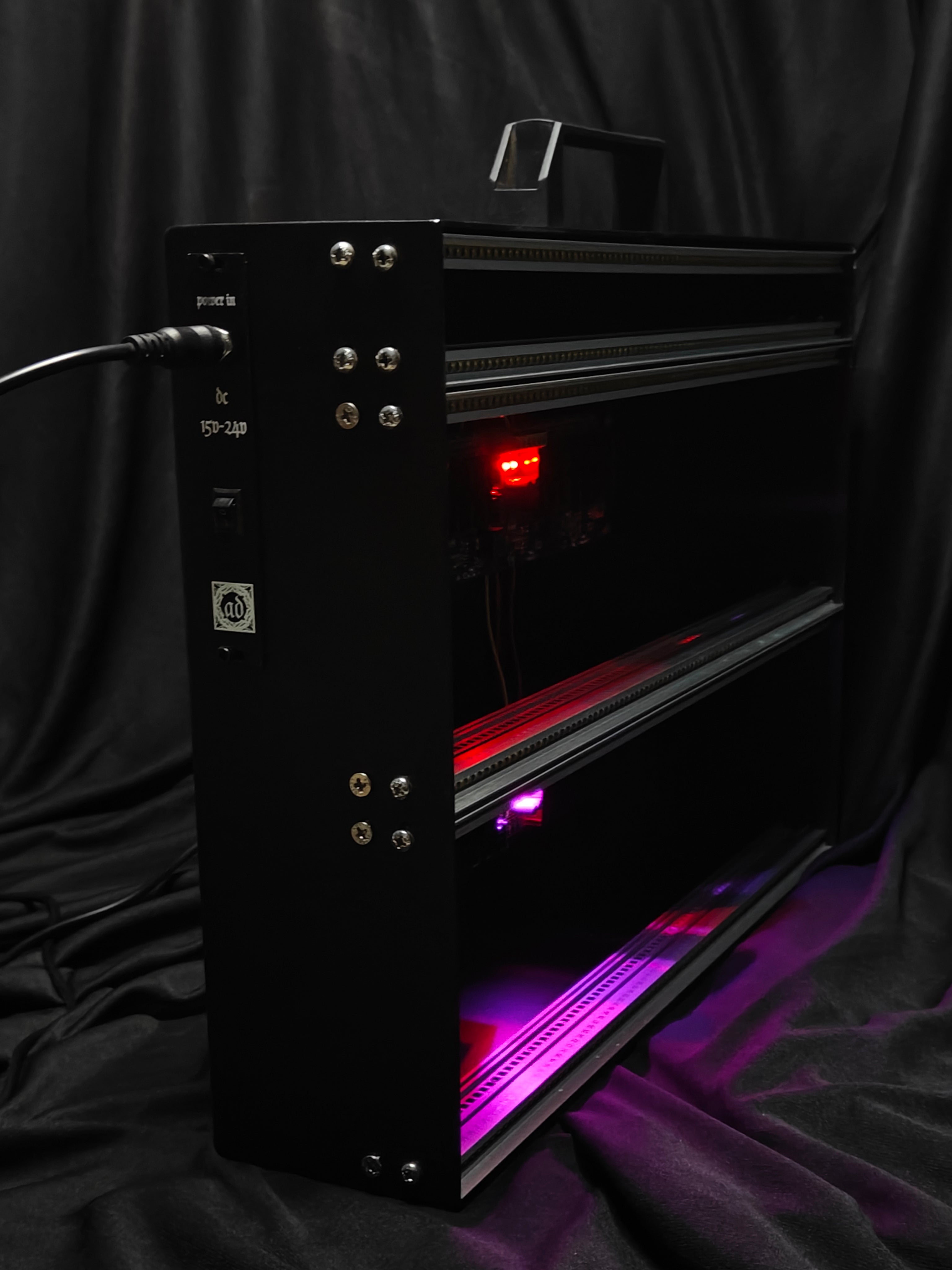

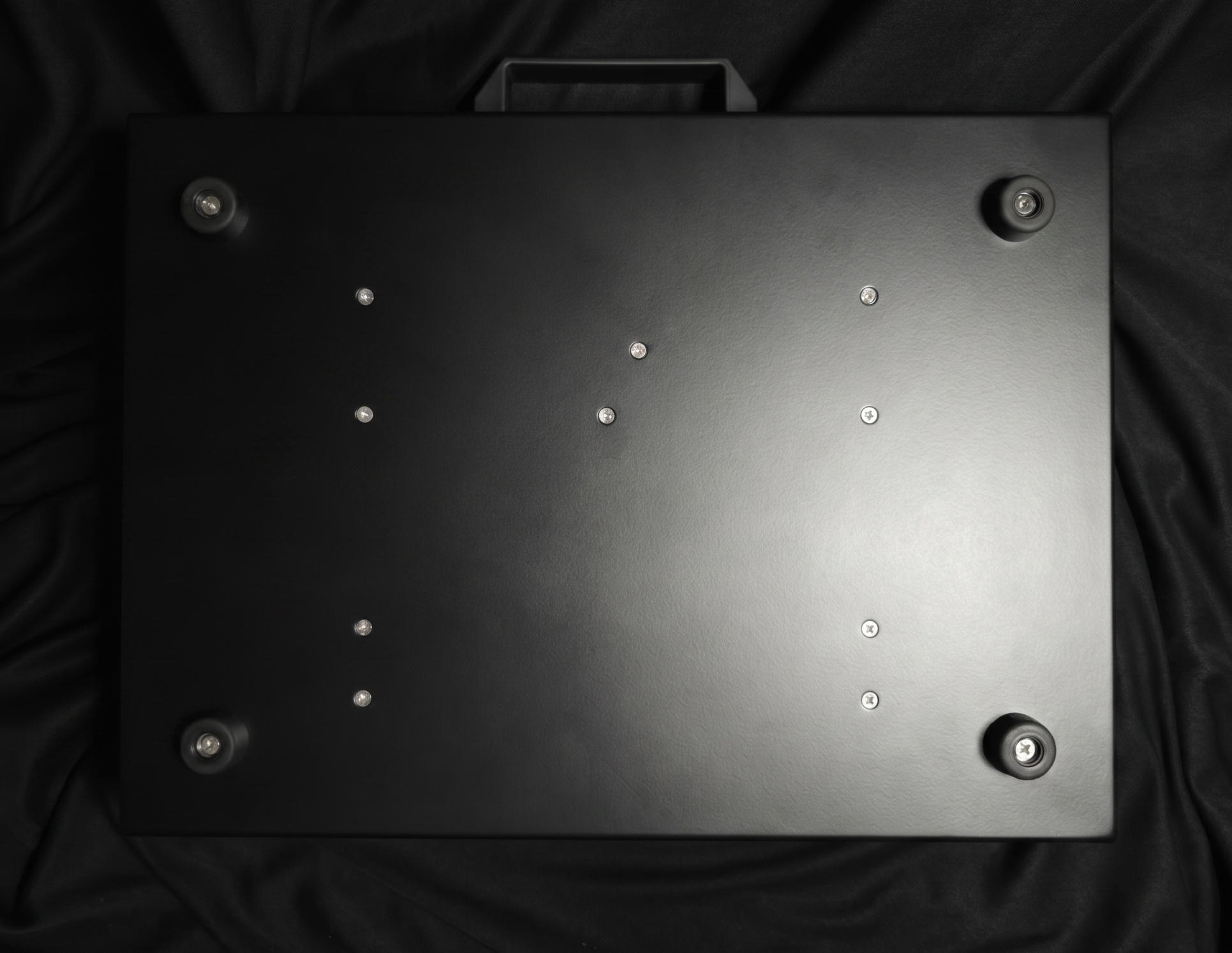

The enclosure is constructed from black powder-coated aluminium and features strengthened aluminium rails with standard M3 threaded strips for mounting your modules. It allows for a maximum module depth of 80mm, making it compatible with the vast majority of standard Eurorack modules. The case sits securely on 10mm rubber feet, and comes equipped with an ABS plastic carrying handle for transport.

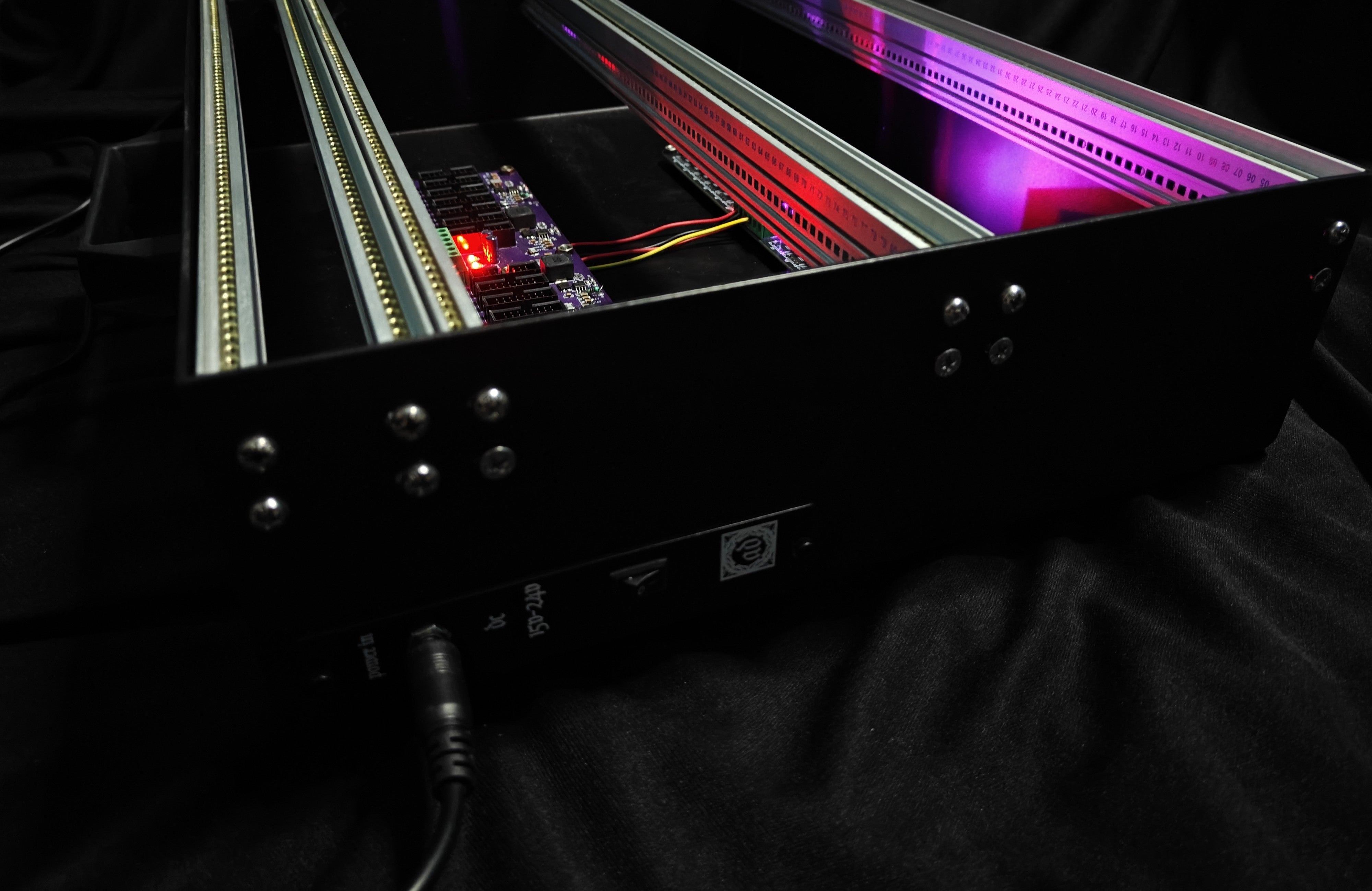

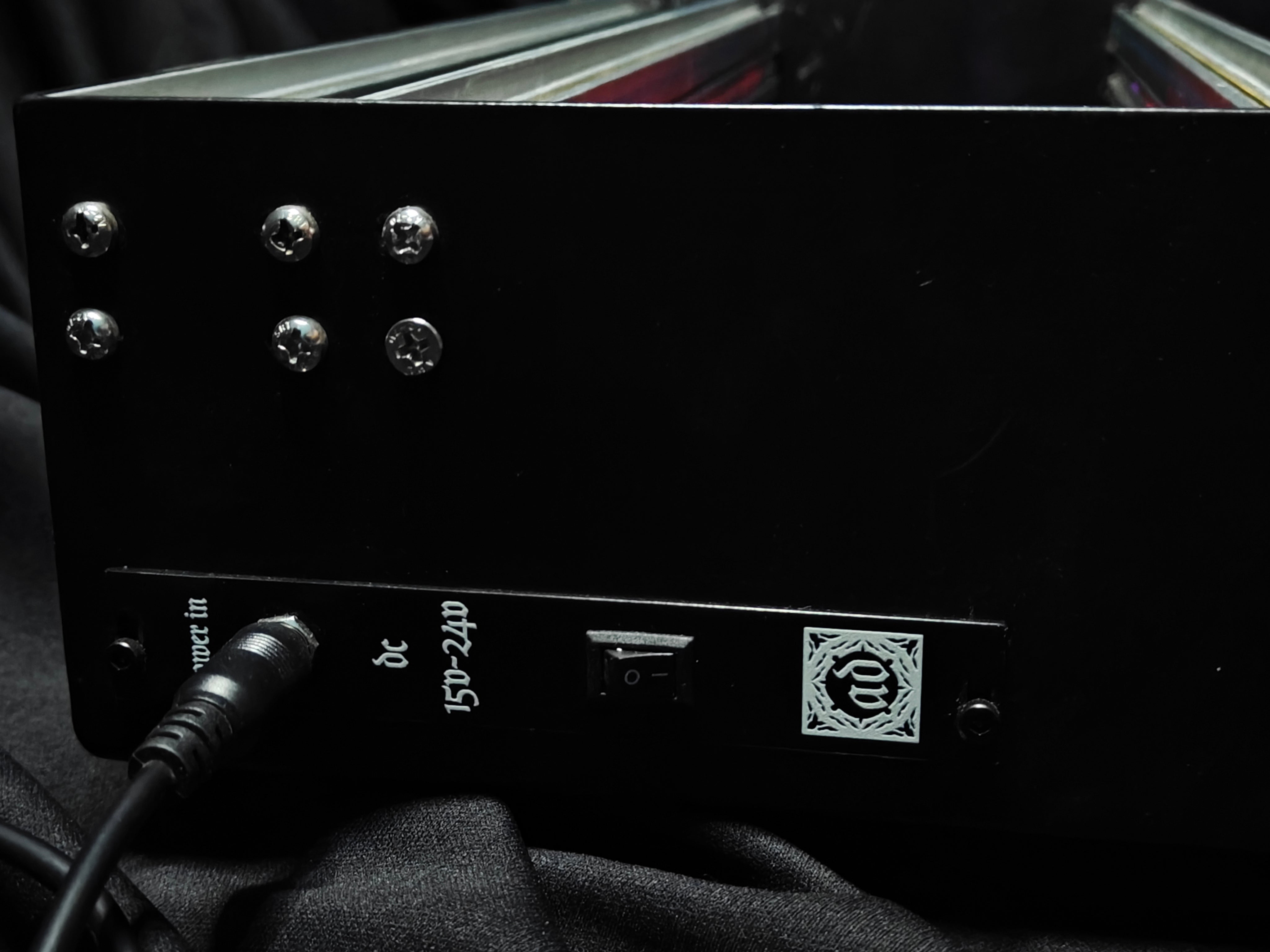

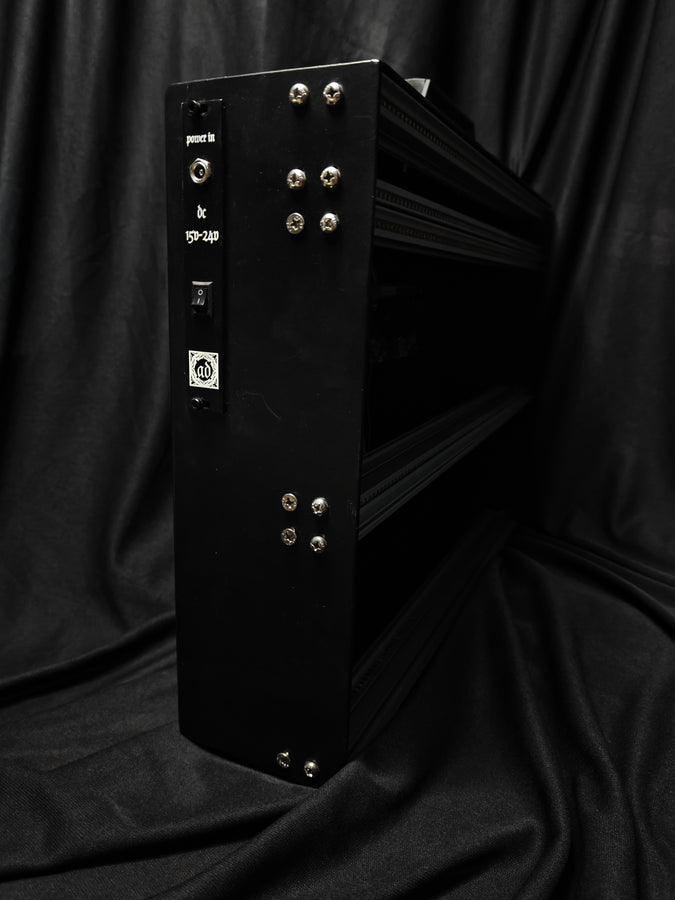

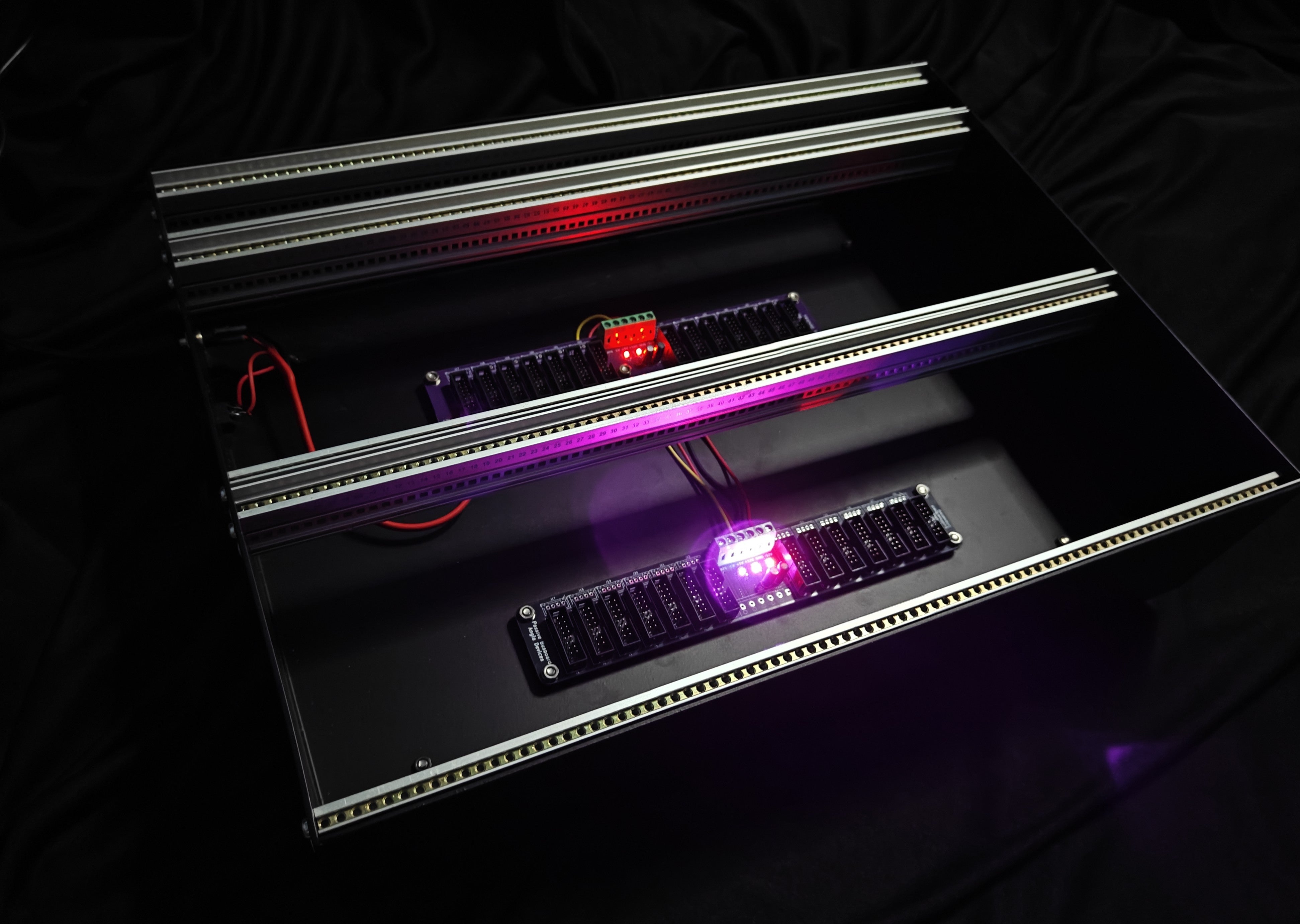

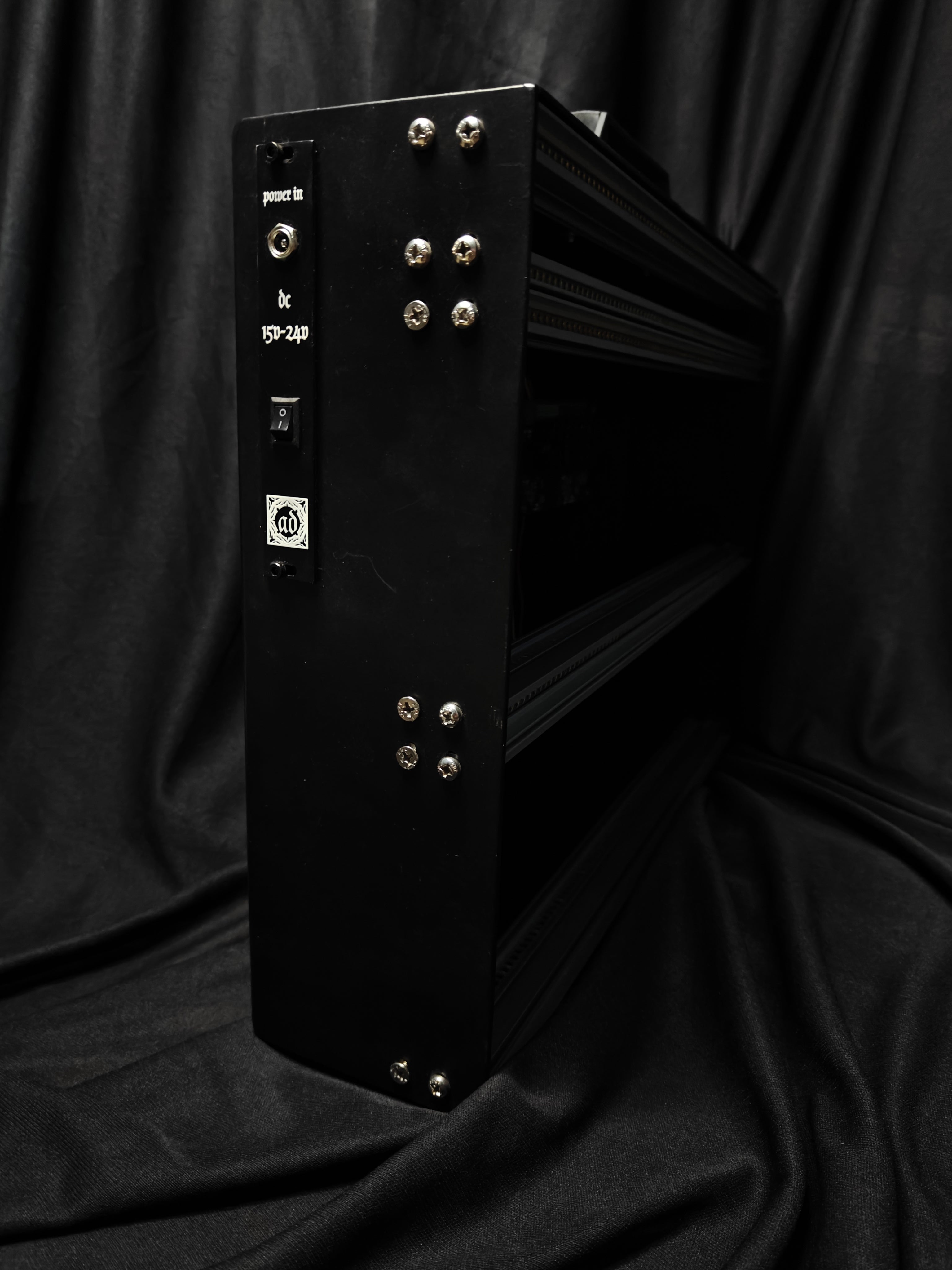

Power is routed through an integrated bus board capable of delivering 3000mA at +12V, 1000mA at -12V, and 1500mA at +5V. The system requires a +15-24V DC input via a 5.5mm DC barrel jack. The power input panel is formatted as a 4HP unit that mounts to a dedicated point on the side of the case to save you front-panel space, though it can be freely repositioned onto the main rack rails if preferred. An optional USB-C PD to DC jack adapter can be provided if you wish to power your rack from a USB-C adapter or even compatible PD battery bank for on-the-go modular fun!

Specs:

• Max Depth: 80mm

• Width: 84HP - Height: 7U (1U + 3U + 3U)



• Power Output: 3000mA +12V, 1000mA -12V, 1500mA +5V

• Power Input: +15-24V DC (5.5mm barrel jack), power dependent on expected consumption from your particular module setup. We recommend opting for a power adapter capable of delivering at least 40W.

• Mounting: M3 threaded strips, compatible with standard M3 screws.

Proudly manufactured in India. Built to order only.

NB: A power supply brick is NOT included by default. Please choose an additional power adapter or optional USB-C PD power adapter if needed.
