मध्यम | Madhyam - Middle, Intermediate

Madhyam2 is a digital, reprogrammable general-purpose Eurorack module geared towards audio generation. It is a 4HP Eurorack 'hat'/expansion for the SeeedStudio XIAO RP2350, making it the perfect choice for all kinds of audio generation duties in any rack; whether you just want a compact sound source of your choice, or are a maker looking to rapidly prototype your audio firmware ideas into a real module, with all the ease of programming that the RP2350 platform allows.

This module can be bought either without any firmware or pre-flashed with one of many programs available.

Madhyam2 provides 4x 3.5mm mono jacks connected to the I/O pins of the XIAO RP2350. There are 2x inputs available for gate/trigger signals, an input for Control Voltage signals, and a single output. As the XIAO RP2350 only has three AD inputs, the CV input is shared with POT3.

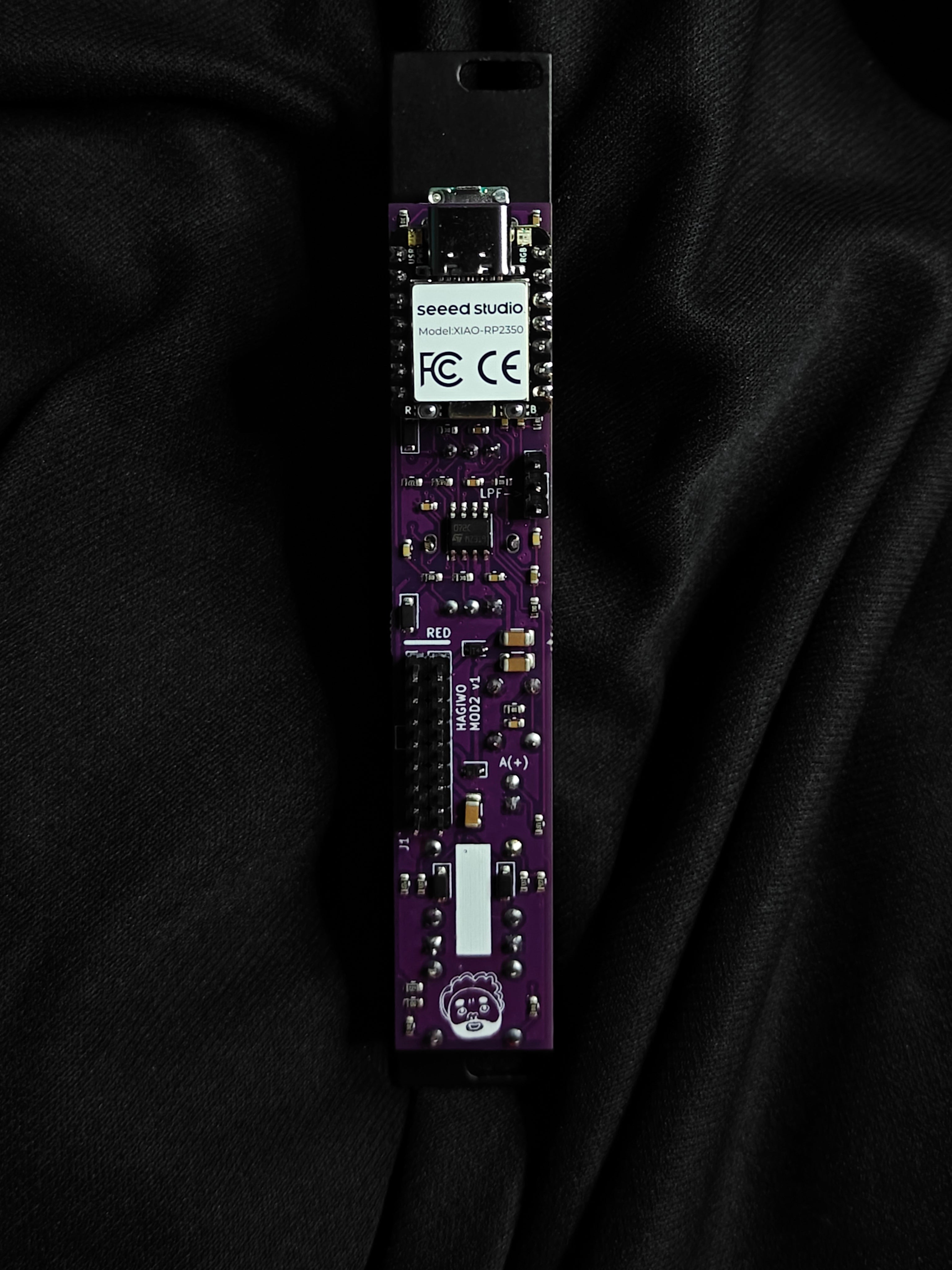

The voltage range for the input patch points is 0-5V only. The output voltage is an AC output of Vpp = 10V. This module does not use a DAC, instead using PWM for audio output; harmonics derived from the PWM in the output audio are smoothed with an RC low-pass filter. To cover a wide range of uses, the module includes a jumper on the back to choose between higher or lower cutoff frequency for the internal RC LP filter.

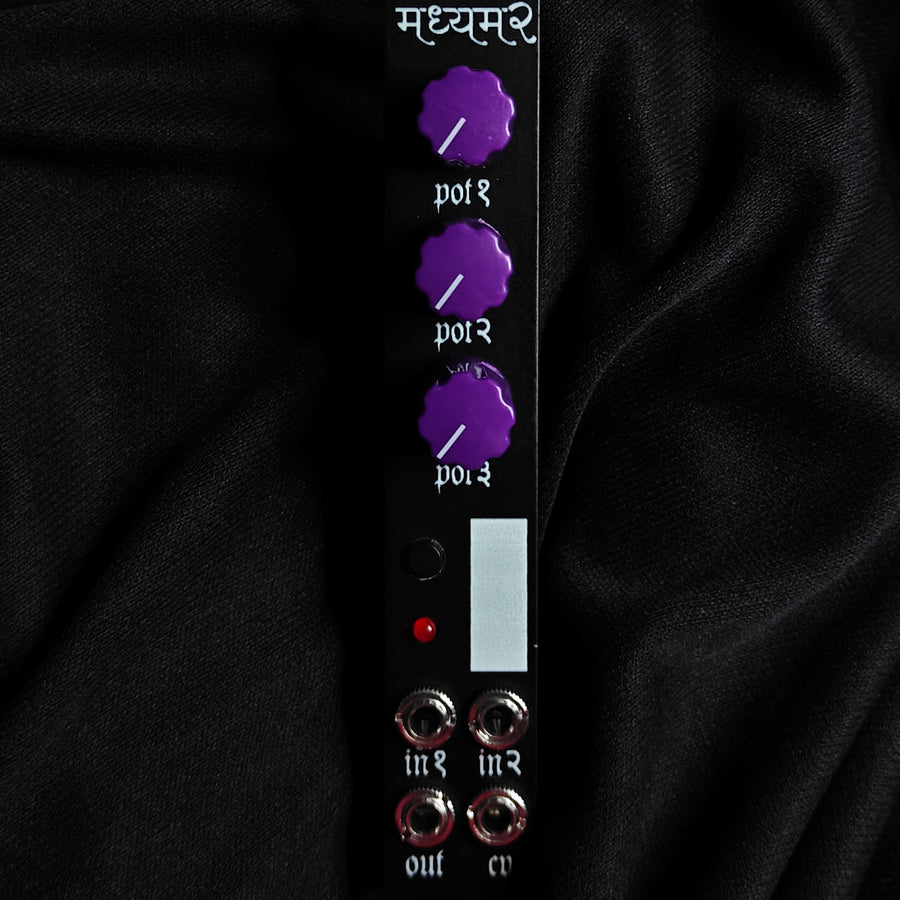

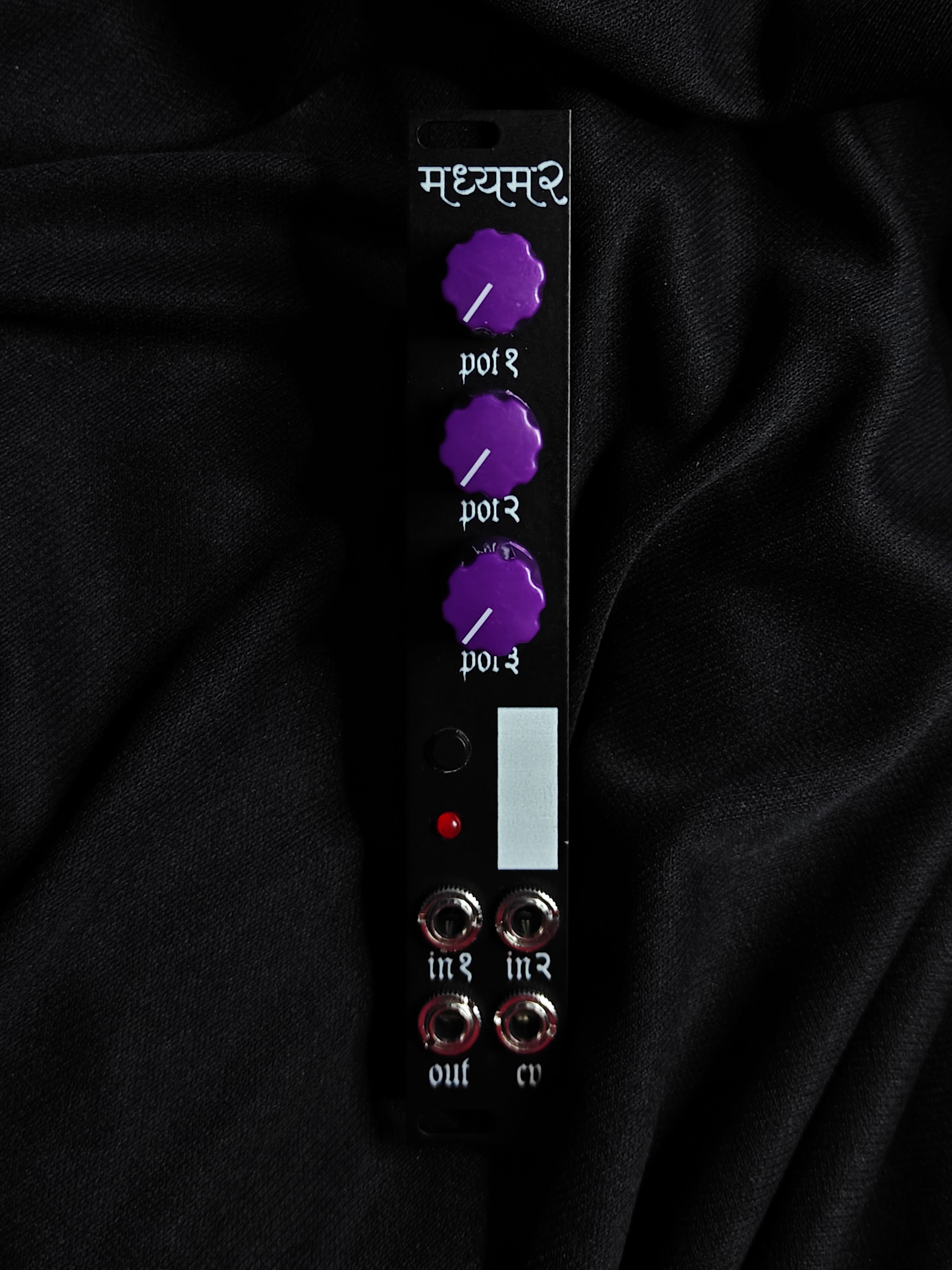

Alongside these, the module also includes 3x high-quality potentiometers, 1x push-button switch, and an LED indicator. And a blank panel area for you to give your module a unique name!

Specs:
- Width: 4HP
- Power: 10mA +12V, 10mA -12V, 50mA 5V
- Includes: 2x M3 mounting screws, 16-pin Eurorack power cable

मध्यम२ is an adaptation of the 'Mod2' open-source project by HAGIWO. More information on the project as well as example firmware code can be found here: https://note.com/solder_state/n/nce8f7defcf98

Alternatively, Modulove have a web-based flasher for directly programming your module with a selection of example firmwares: https://dl.modulove.de/module/mod2/

NB: This is NOT a HAGIWO product, and under no circumstances should they be contacted for any support queries! Please contact us for any and all support required!

XIAO(R) and Seeed Studio(R) are registered trademarks of Seeed Technology Co., Ltd. RP2350 is a trademark of Raspberry Pi Ltd. This product is an independent production and is NOT affiliated with, sponsored by, or endorsed by Seeed Technology or Raspberry Pi Ltd. All trademarks are the property of their respective owners.
