स्वर | Svara: Tone, the holistic dimension of a generated pitch.

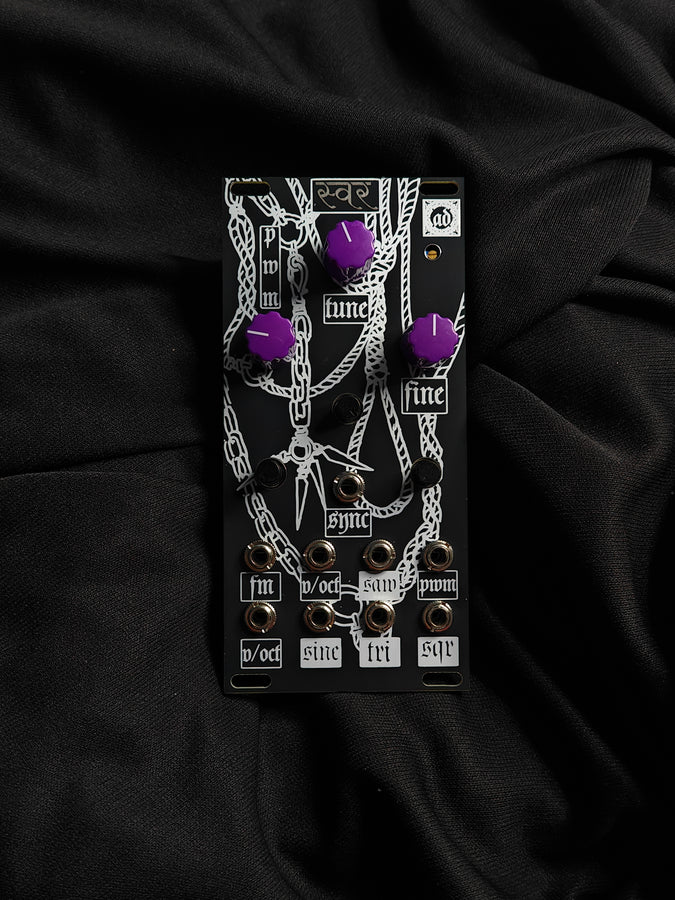

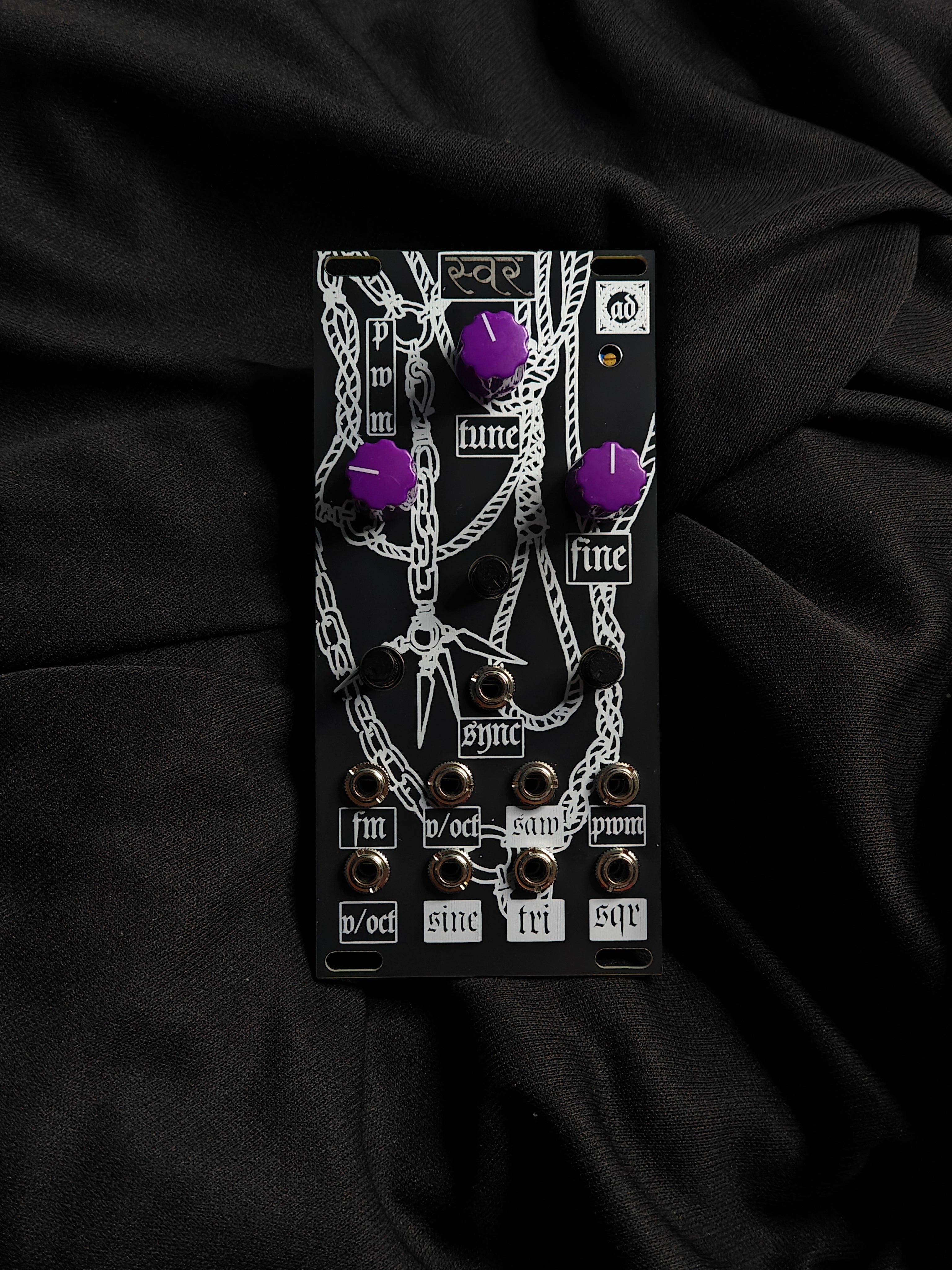

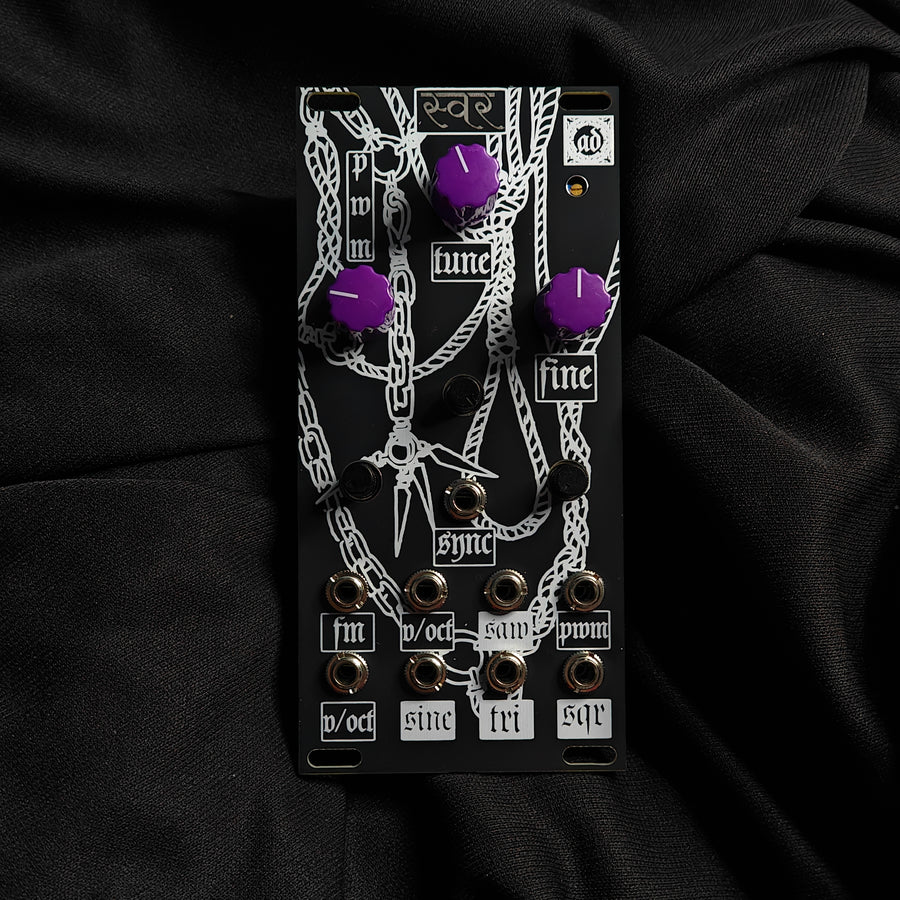

Svara is an all-analog, saw-core Voltage Controlled Oscillator module. It offers 4x waveshape outputs (Sine, Triangle, Sawtooth, Pulse), with CV inputs for Pulse Width Modulation, FM, variable sync, and 2x V/Oct pitch inputs.

Eschewing modern 'VCO-on-a-chip' circuits for a truly retro internal design instead, Svara offers 4-5 octaves of musical stability with a remarkably analog character in a no-nonsense package that is sure to be at home in any Eurorack system that needs old-school analog magic; from vintage intermodulated bleeps and bloops to warm, biting melodies that can cut right through any mix.

Specs:
- Width: 12HP
- Power: 15mA +12V, 15mA -12V
- Includes: 4x M3 mounting screws, 16-pin Eurorack power cable

स्वर is an adaptation of the 'Tom Yum' open-source module by Voxmachina/musicdevghost, provided under MIT license.

NB: This is NOT a Voxmachina product, and under no circumstances should they be contacted for any support queries! Please contact us for any and all support required!
