पीठिका | Pithika (IPA: piʈʰɪkɑ) - Pedestal, foundation, arch.

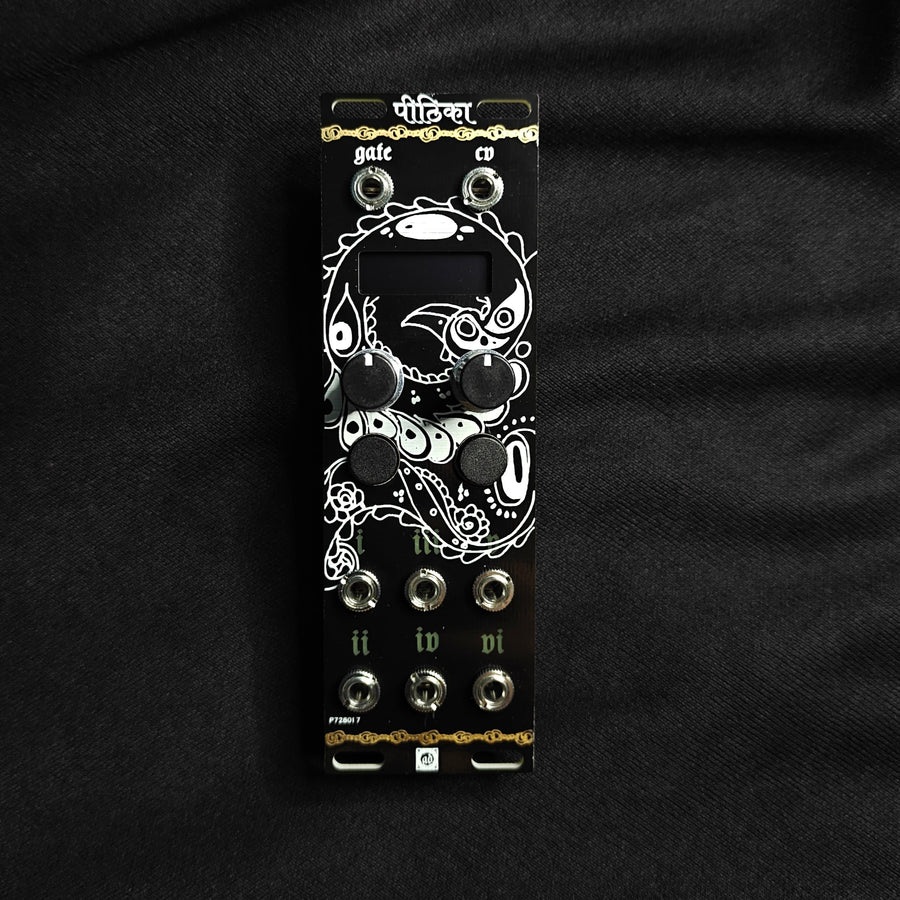

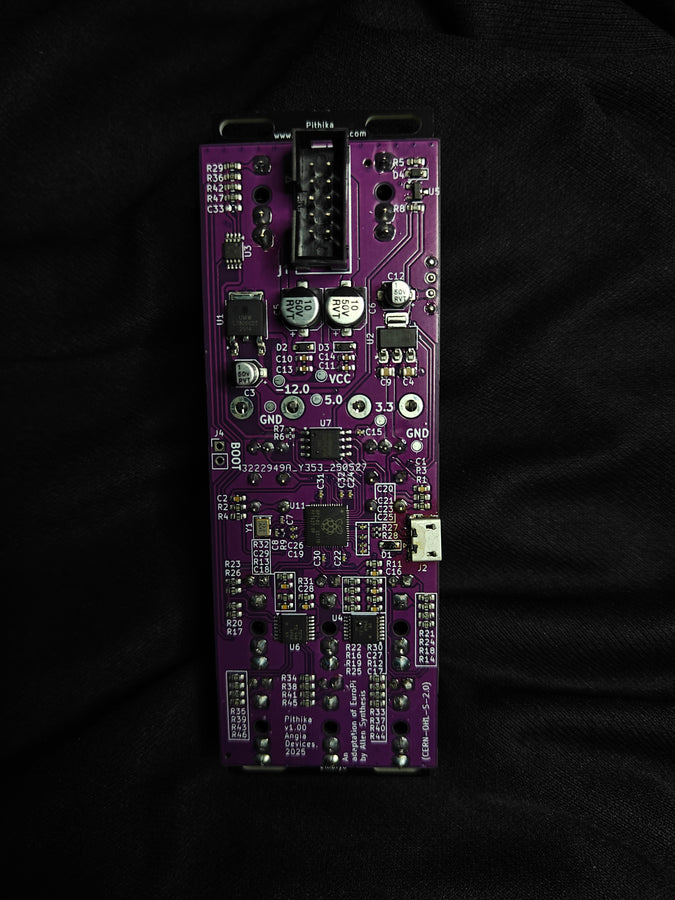

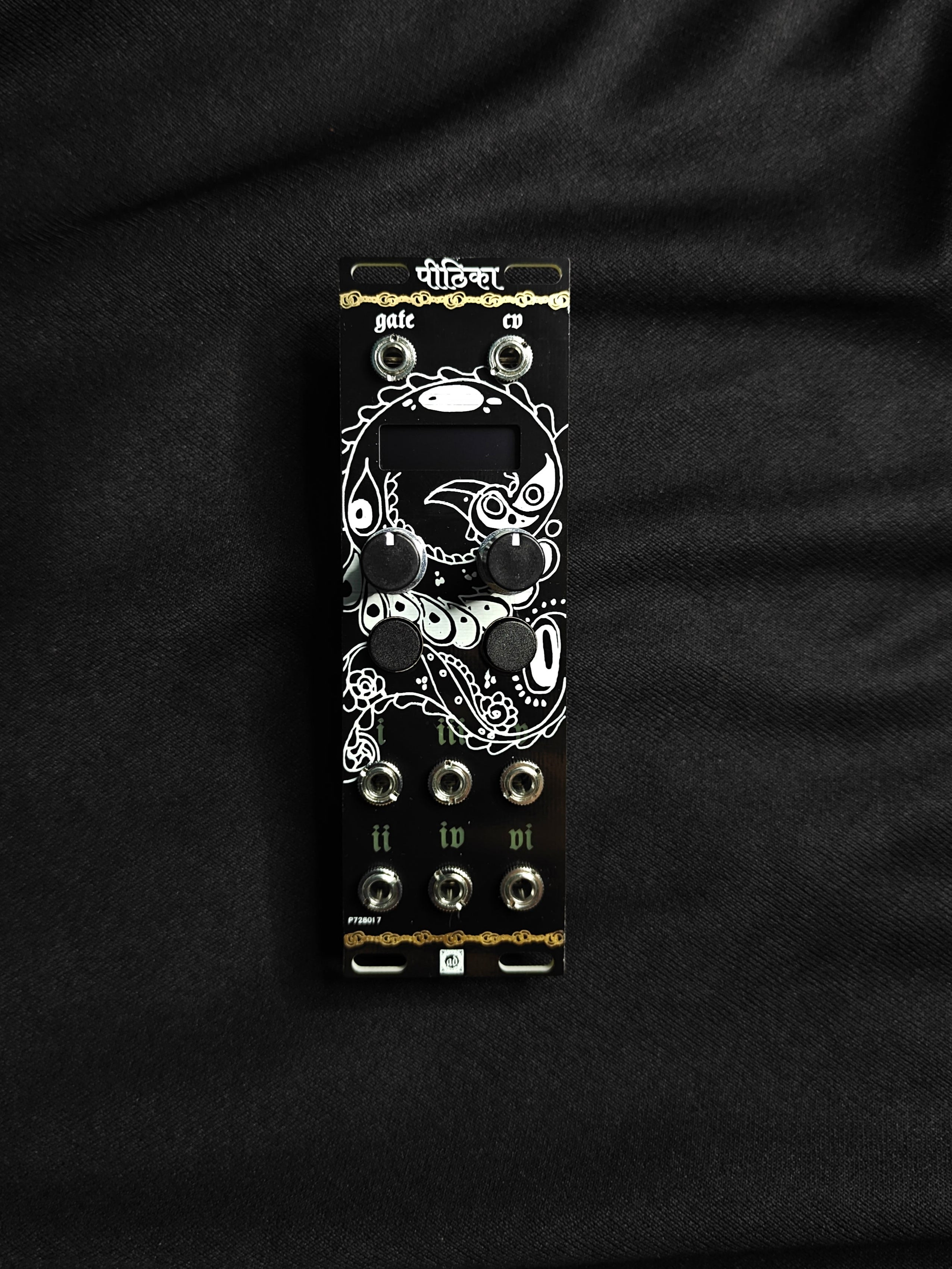

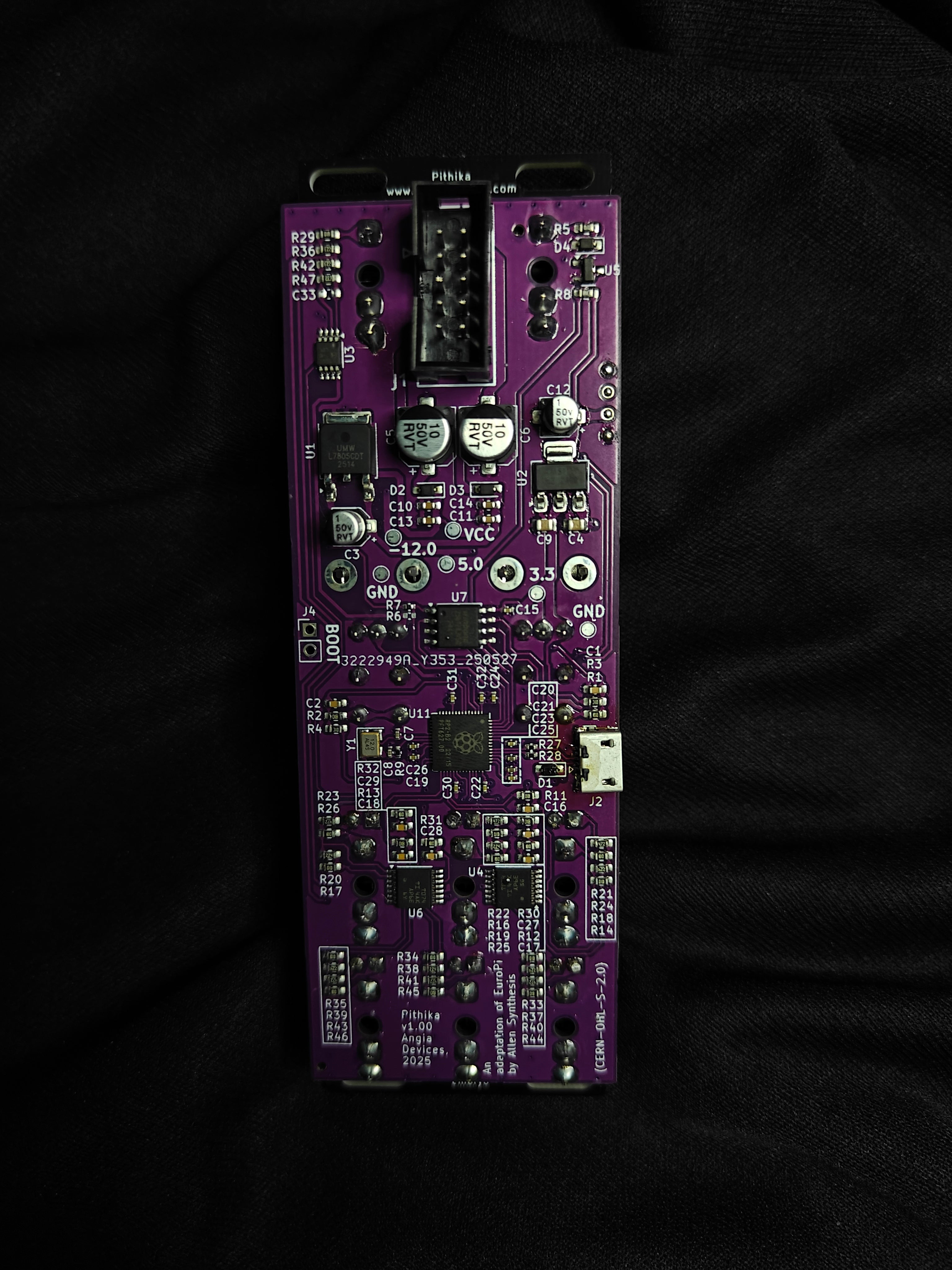

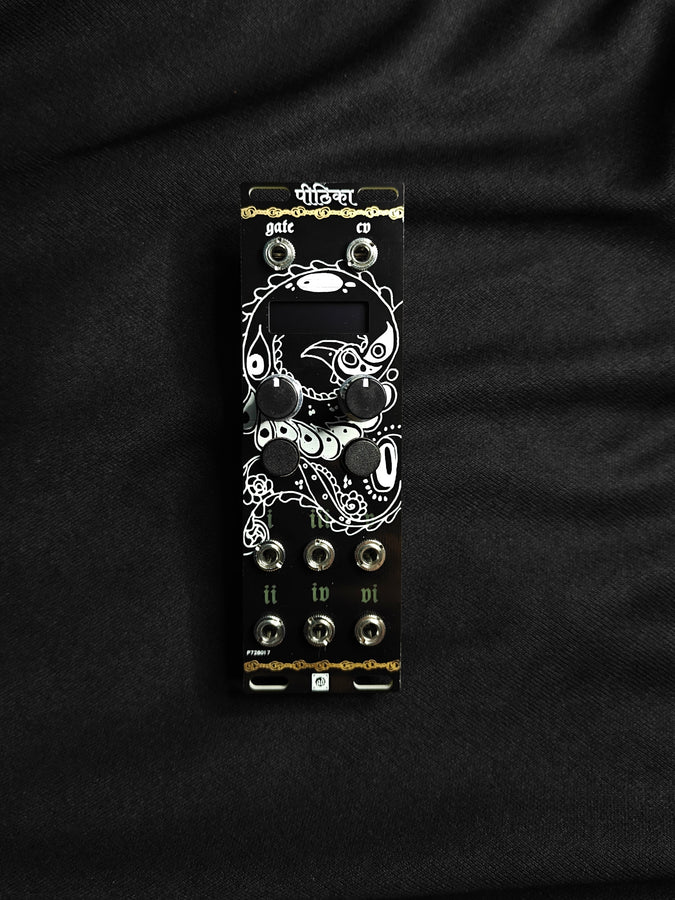

Pithika is a fully reprogrammable Eurorack module built around the RP2040 microcontroller for generating and modulating Control Voltage. An adaptation of the venerable 'EuroPi' open-source module, Pithika takes the DIY-friendly, relatively bulky design of the original and streamlines it into a single, in-house designed PCB with surface-mount components within the same 8HP form factor.

From harmonic LFOs to a Turing machine, quantizing to master clock, Pam's clone to CV recorder, Pithika is a worthy and versatile addition to any Eurorack system.

Features:
- 1x Gate In, 1x CV In, 6x CV out

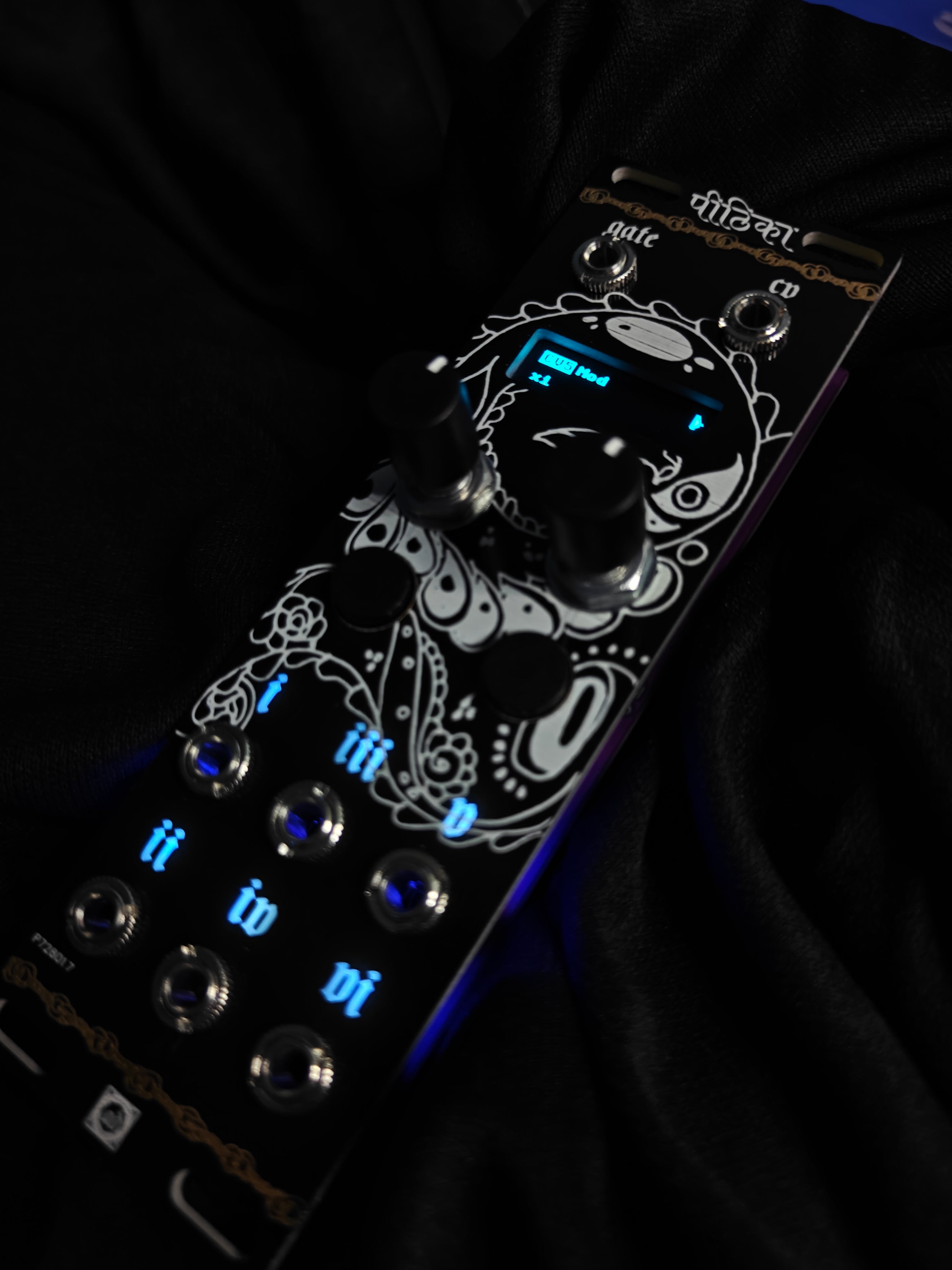

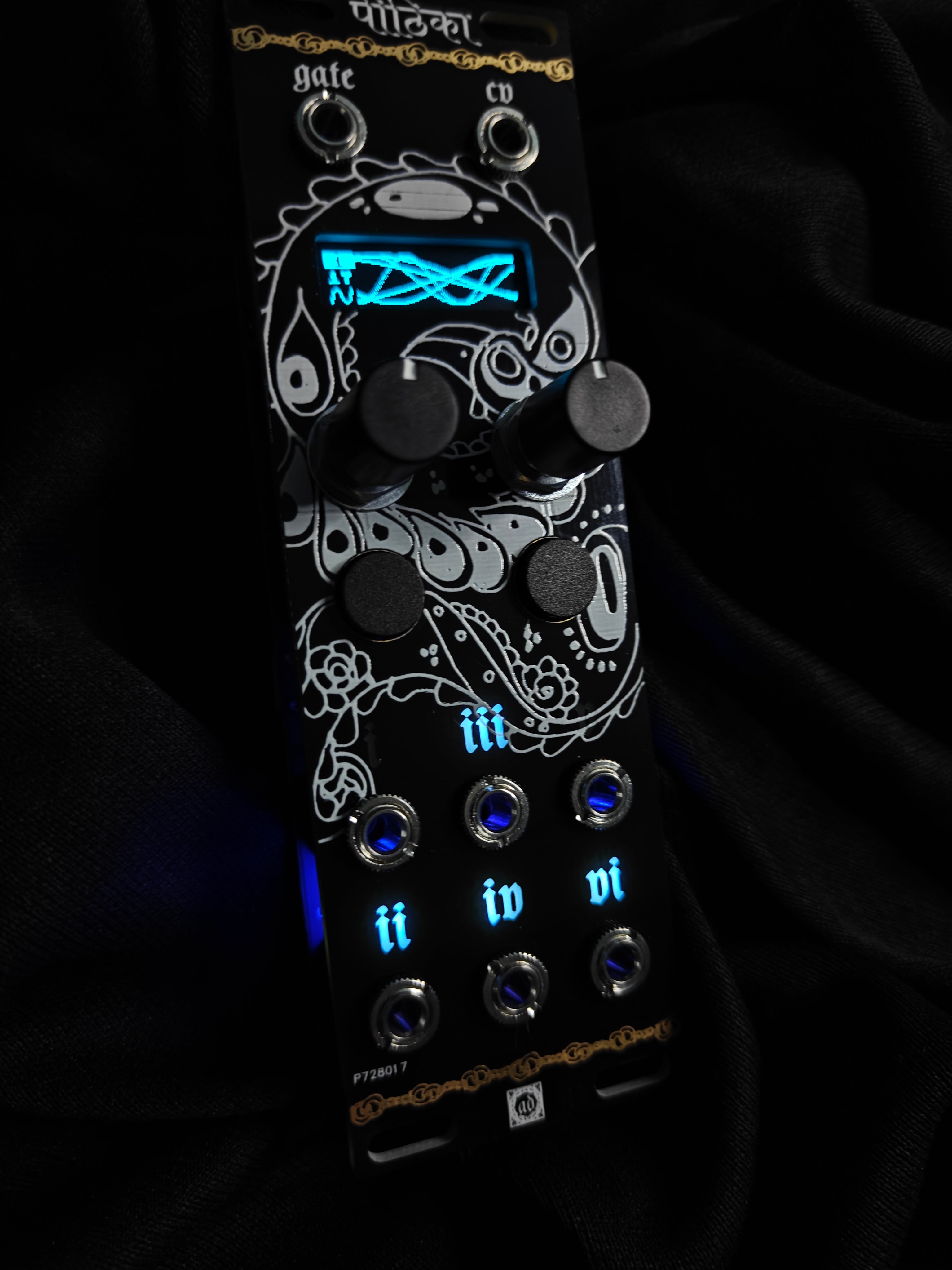

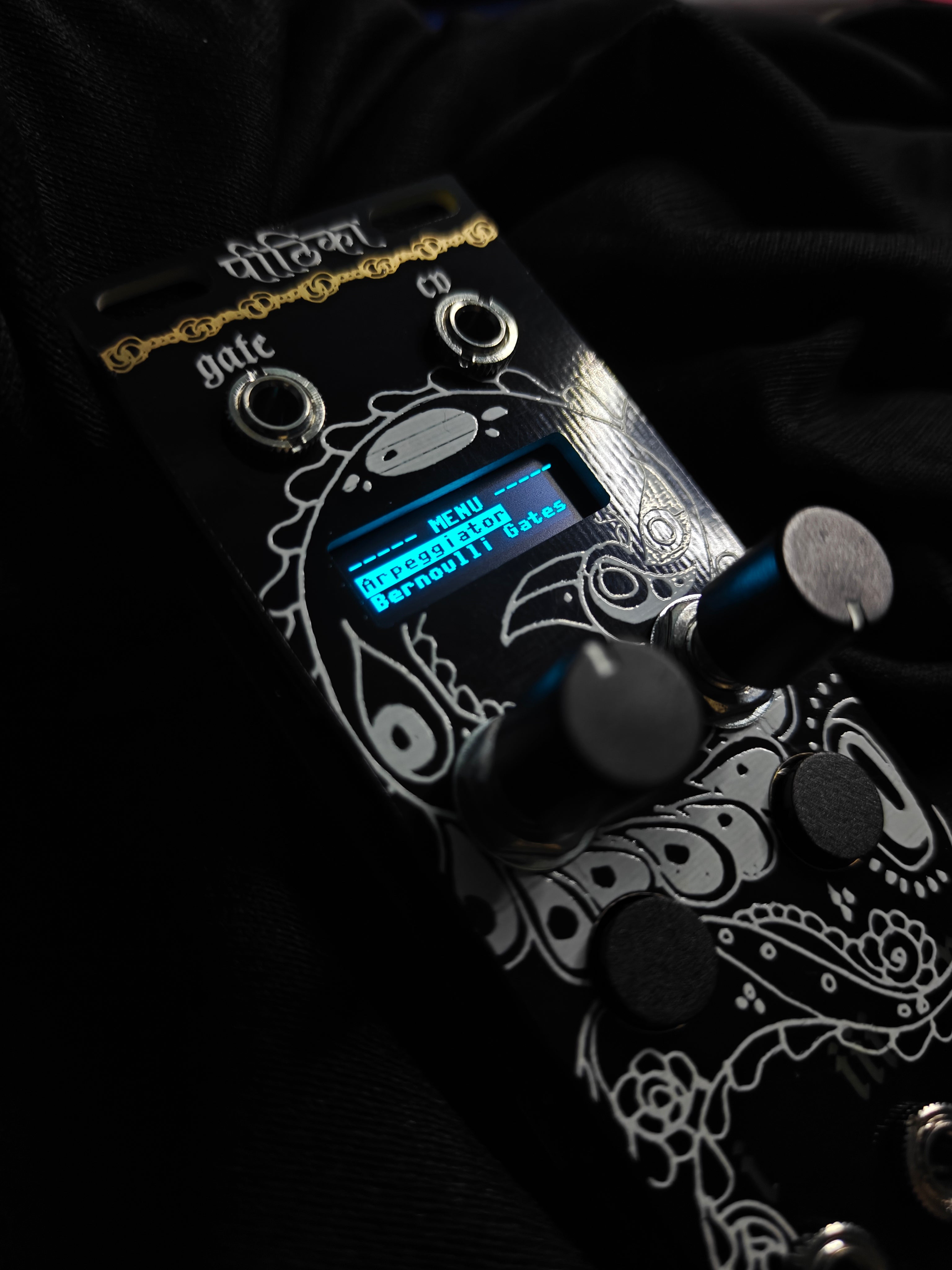

- 128x32 OLED Display
- 2x potentiometers and 2x buttons for controls
- Runs the EuroPi firmware with dozens of applets included. For a full list of all applets, please visit the 'Readme' on the original project GitHub: https://github.com/Allen-Synthesis/EuroPi/blob/main/software/contrib/README.md

Specs:
- Width: 8HP
- Power: 90 mA +12V, 8 mA -12V
- Includes: 4x M3 mounting screws, 16-pin Eurorack power cable

पीठिका is an adaptation of the 'EuroPi' open-source project by Allen Synthesis, provided under CERN OHL-S v2 license for hardware.

Please visit the EuroPi GitHub page to find all documentation and firmware releases: https://github.com/Allen-Synthesis/EuroPi/

NB: This is NOT an Allen Synthesis product, and under no circumstances should they be contacted for any support queries! Please contact us for any and all support required!
Please be careful while inserting or removing a cable from the microUSB port on the back of the module for firmware updates or reprogramming, as the port may break off the circuit board if mishandled.
